2022-12-14 수정.
아래로 내려보면 해결법이 있습니다.

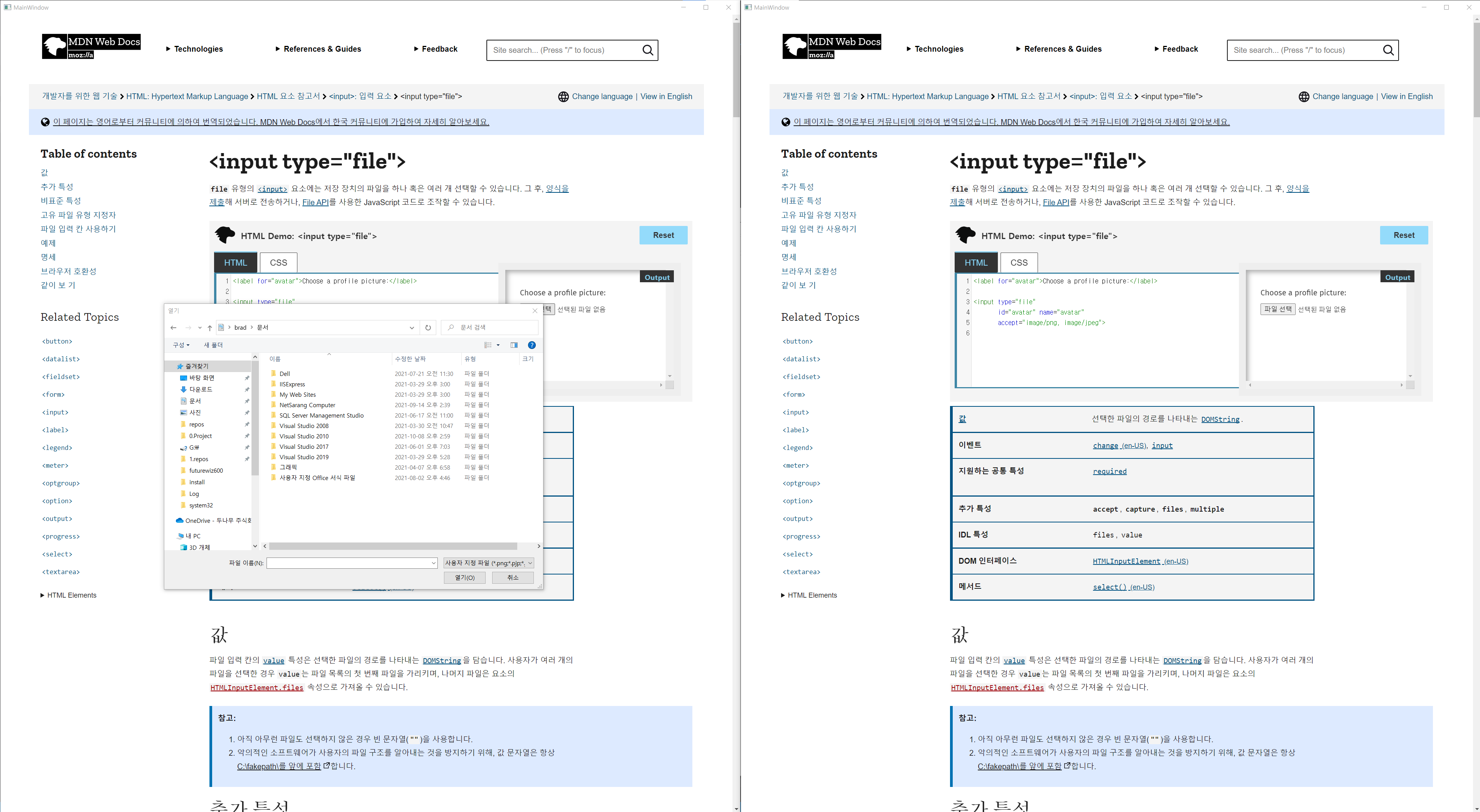

c# webview2에서 input file type 버튼을 클릭시 파일 다이얼로그 창이 뜨지 않는 현상이 있어 찾아보니 관리자 권한으로 실행시 다이얼로그 창이 뜨지 않는다고 한다.
WebView2 WPF application can't open file dialog when it run as administrator · Issue #734 · MicrosoftEdge/WebView2Feedback
Description WebView2 WPF application can't open file dialog when it run as administrator. When I run the application as user mode, I can open file dialog normally. In my html file, I use <in...< p=""> </in...<>
github.com

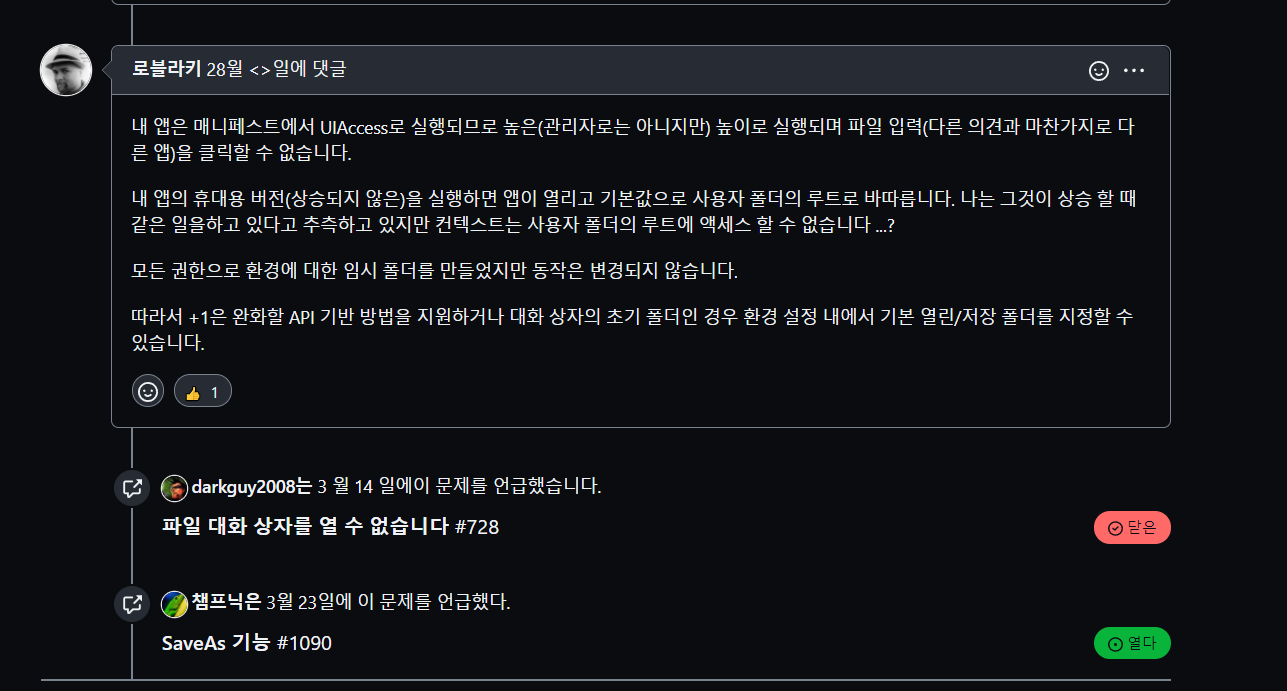

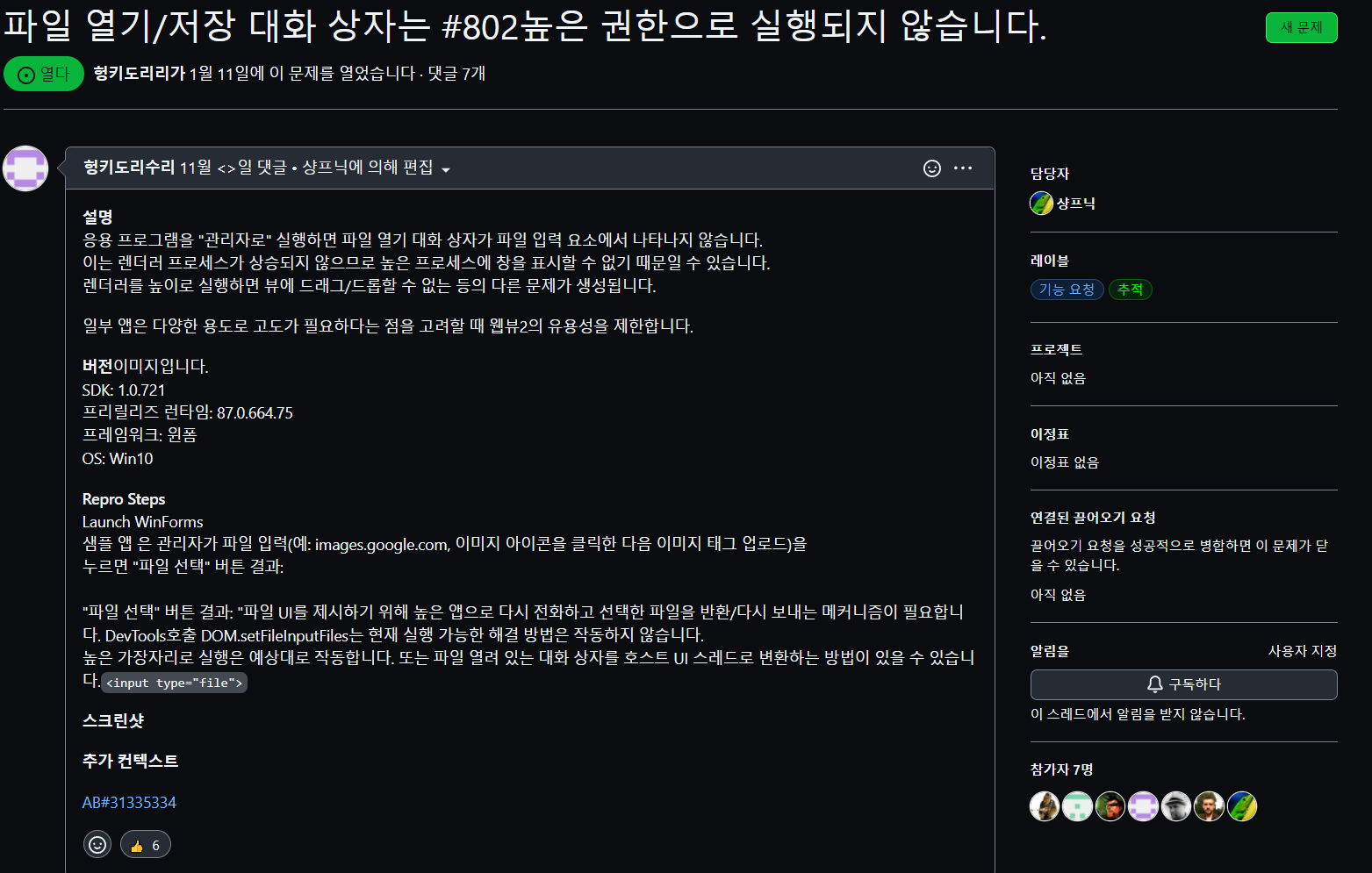

File Open/Save Dialog doesn't show running w/ elevated privileges · Issue #802 · MicrosoftEdge/WebView2Feedback
Description When running application "as administrator" (elevated), the File Open dialog will not appear from a file input element. This is presumably because the renderer process is not ...
github.com
링크 : SaveAs functionality · Issue #1090 · MicrosoftEdge/WebView2Feedback (github.com)
SaveAs functionality · Issue #1090 · MicrosoftEdge/WebView2Feedback
I'm using WebView2 in C++. How can I implement SaveAs option from right click menu? It is supposed to launch SaveAs dialog to save html file. AB#32723386
github.com
현재 (2021-10-20) 기준으로 지원하지 않고 있고 개발중인 것으로 판단된다.

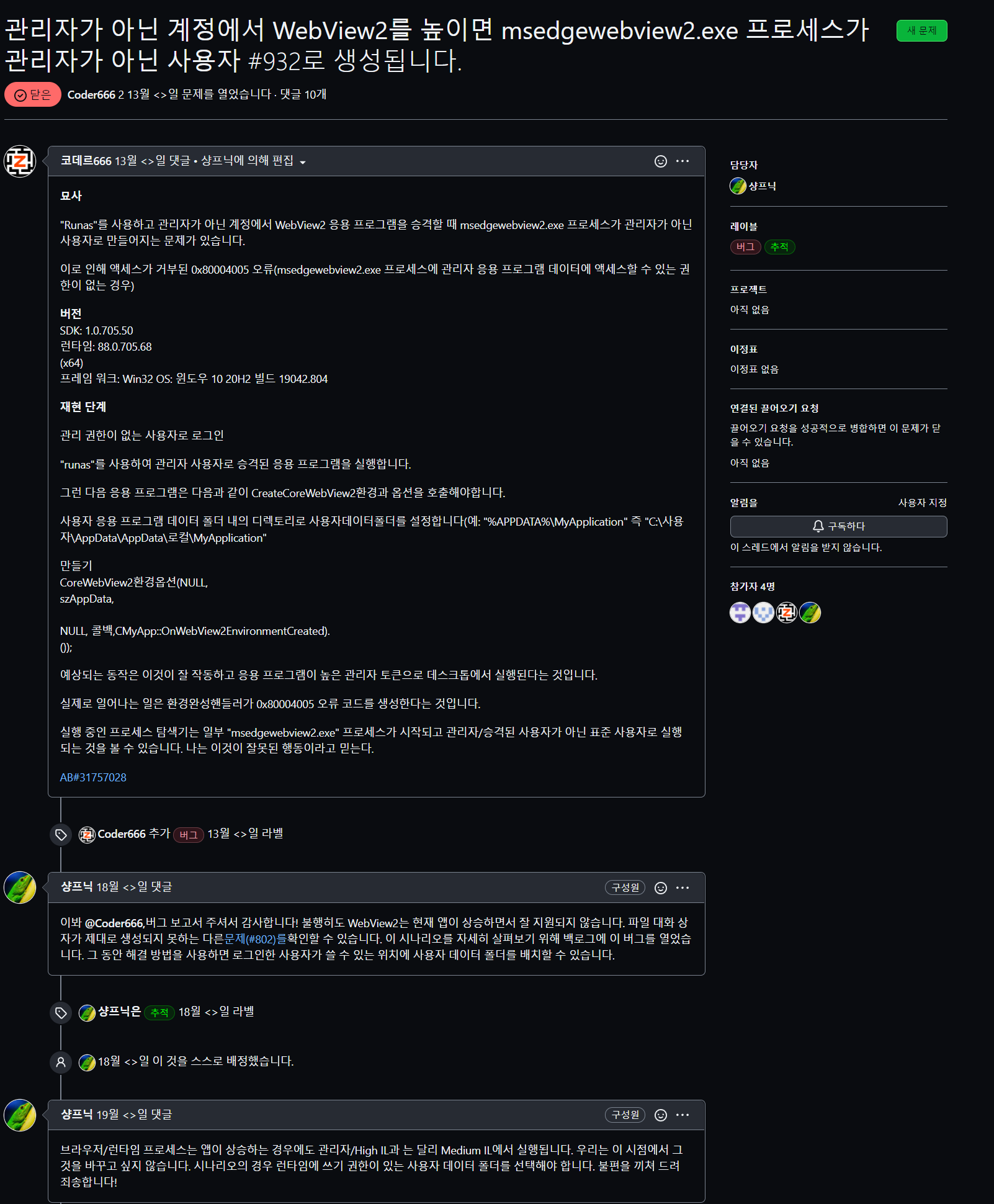

Elevating WebView2 from non-admin account creates the msedgewebview2.exe processes as the non-admin user · Issue #932 · Micros
Description When using "Runas" and elevating a WebView2 application from non-admin account, there is an issue whereby the msedgewebview2.exe processes are created as the non-admin user Th...
github.com

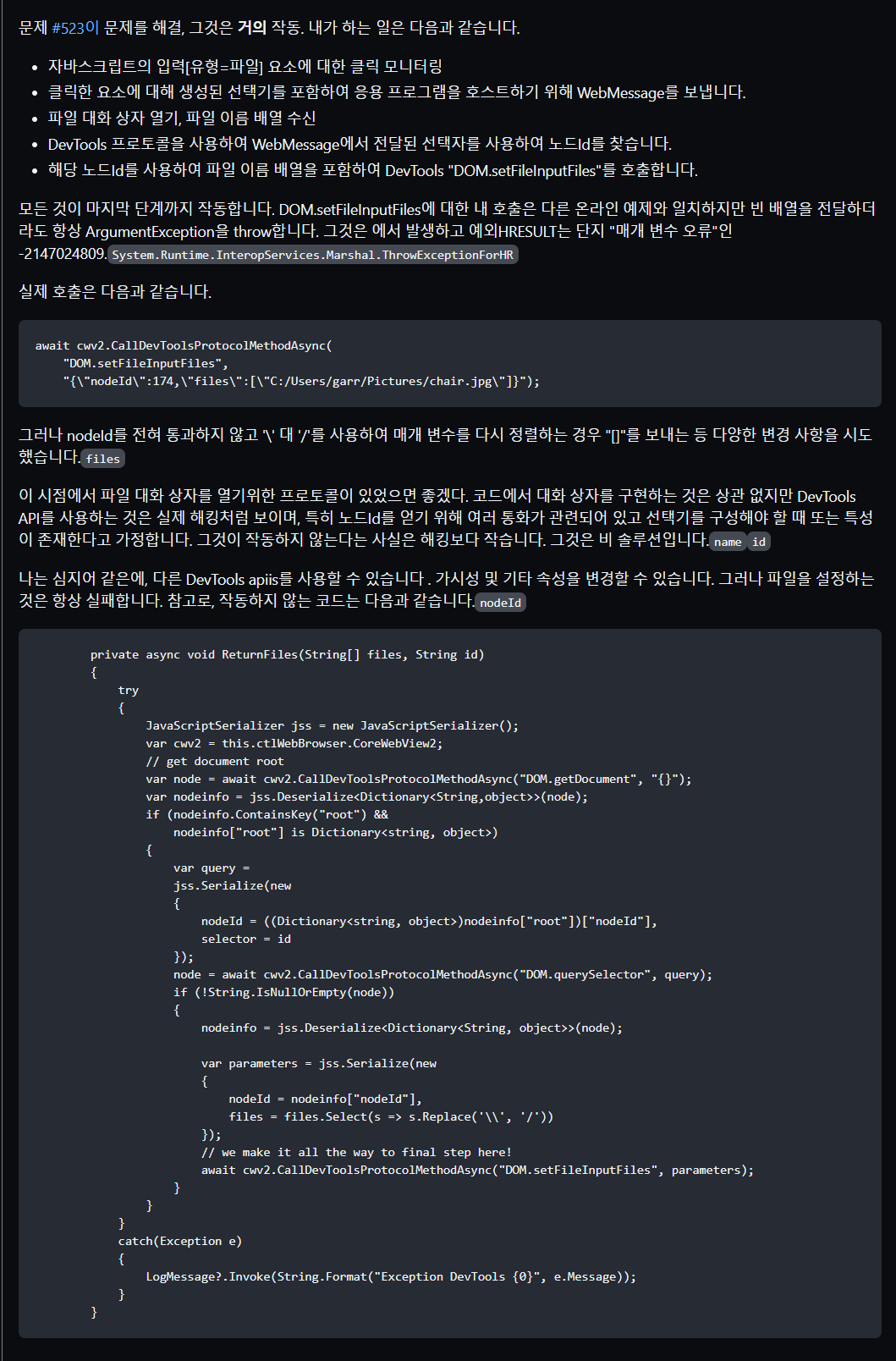

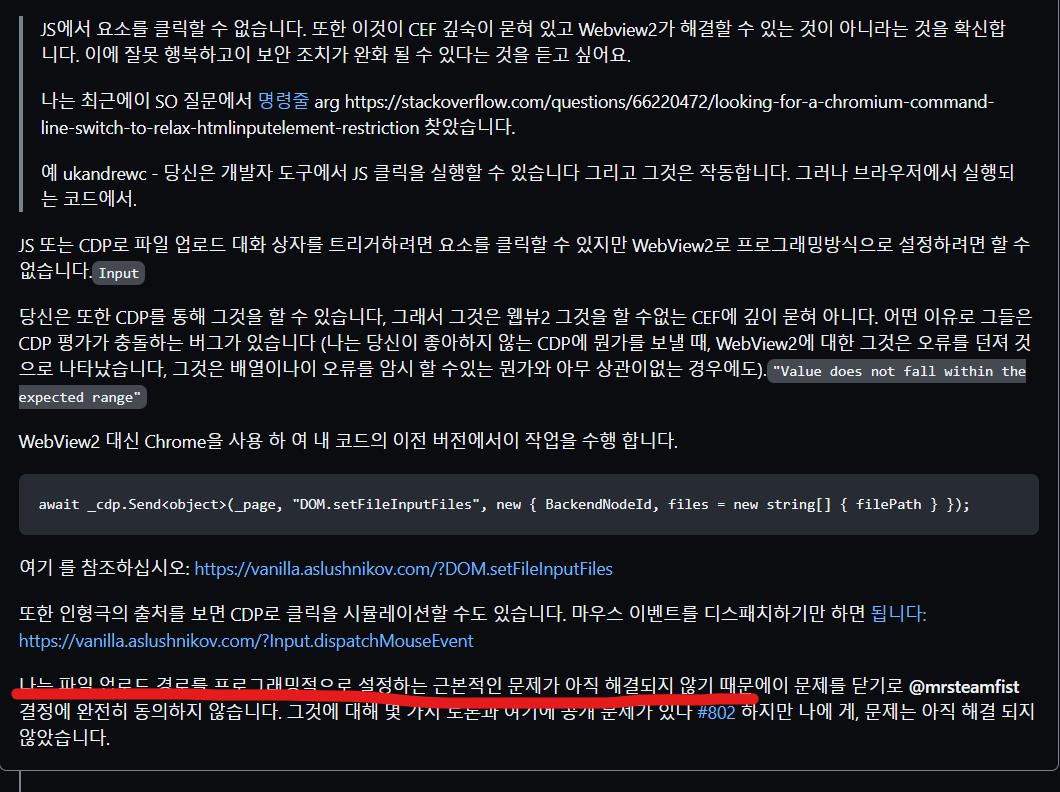

https://github.com/MicrosoftEdge/WebView2Feedback/issues/728#issue-761494788
Cannot open files dialog · Issue #728 · MicrosoftEdge/WebView2Feedback
In searching for a way to access and upload files through WebView2 I've hit a roadblock. Note, drag-drop of files into webview2 is working great. I can get a filelist this way. But I have no co...
github.com
위와 같은 방법으로 테스트를 진행했다.
[html 파일 내용]
<!DOCTYPE html>
<html lang="ko">
<head> </head>
<body>
<div class="container">
<input type="file" id="file_input" onclick="clickEvent(event)" />
<button type="button" onclick="getFile()"> "window.showOpenFilePicker()" </button>
</div>
</body>
<script>
var nodeId = document.querySelector("#file_input");
function clickEvent(e) {
e.preventDefault();
window.chrome.webview.postMessage("1111");
alert(nodeId);
}
// store a reference to our file handle
let fileHandle;
async function getFile() {
// open file picker
[fileHandle] = await window.showOpenFilePicker();
if (fileHandle.kind === 'file') {
// run file code
} else if (fileHandle.kind === 'directory') {
// run directory code
}
}
</script>
</html>[C# 코드]
using Microsoft.Web.WebView2.Core;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Text.Json;
using static Microsoft.Web.WebView2.Core.DevToolsProtocolExtension.DOM;
namespace Webview2InputTypeClick
{
public partial class Form1 : Form
{
public string TextBoxURL { get => textBox1.Text; }
public Form1()
{
InitializeComponent();
SetUI();
SetControlEvent();
this.Load += Form1_Load;
}
private void SetUI()
{
textBox1.Text = @"C:\Users\tjdsk\Desktop\Untitled.html";
}
private void SetControlEvent()
{
button1.Click += (s, e) =>
{
if (string.IsNullOrEmpty(TextBoxURL))
textBox1.Text = "https://developer.mozilla.org/ko/docs/Web/HTML/Element/Input/file";
webView21.CoreWebView2.Navigate(TextBoxURL);
};
textBox1.KeyDown += TextBox1_KeyDown;
}
private void TextBox1_KeyDown(object sender, KeyEventArgs e)
{
if (e.KeyCode.Equals(Keys.Enter))
{
if (!TextBoxURL.Contains("https://", StringComparison.OrdinalIgnoreCase) || !TextBoxURL.Contains("https://", StringComparison.OrdinalIgnoreCase))
textBox1.Text = "https://" + textBox1.Text;
webView21.CoreWebView2.Navigate(TextBoxURL);
}
}
private async void Form1_Load(object sender, EventArgs e)
{
if (string.IsNullOrEmpty(TextBoxURL))
textBox1.Text = "https://developer.mozilla.org/ko/docs/Web/HTML/Element/Input/file";
CoreWebView2Environment coreWebView2Environment = await CoreWebView2Environment.CreateAsync(null, null, new CoreWebView2EnvironmentOptions("--disable-features=RendererCodeIntegrity,PreloadMediaEngagementData,AutoplayIgnoreWebAudio,MediaEngagementBypassAutoplayPolicies"));
await webView21.EnsureCoreWebView2Async(coreWebView2Environment);
webView21.CoreWebView2.Navigate(TextBoxURL);
webView21.CoreWebView2.DocumentTitleChanged += (s, e) => { this.Text = webView21.CoreWebView2.DocumentTitle; };
webView21.CoreWebView2InitializationCompleted += WebView21_CoreWebView2InitializationCompleted;
webView21.CoreWebView2.WebMessageReceived += CoreWebView2_WebMessageReceived;
//await webView21.CoreWebView2.AddScriptToExecuteOnDocumentCreatedAsync("window.chrome.webview.postMessage(window.document.URL);");
//await webView21.CoreWebView2.AddScriptToExecuteOnDocumentCreatedAsync("window.chrome.webview.addEventListener(\'message\', event => alert(event.data));");
}
private void CoreWebView2_WebMessageReceived(object sender, CoreWebView2WebMessageReceivedEventArgs e)
{
string webMessageAsString = e.TryGetWebMessageAsString();
if (webMessageAsString.Equals("1111")) // html에서 input click 이벤트가 발생해 1111이라는 문자열이 들어왔을때만.
{
textBox2.AppendText($"e.WebMessageAsJson = {e.WebMessageAsJson}{Environment.NewLine}");
textBox2.AppendText($"TryGetWebMessageAsString = {webMessageAsString}{Environment.NewLine}");
ReturnFiles(@"C:\Users\tjdsk\Desktop\fed83f319f334a3b12c992b3813c9fb0 (1).jpg", "file_input");
}
}
private void WebView21_CoreWebView2InitializationCompleted(object sender, CoreWebView2InitializationCompletedEventArgs e)
{
textBox2.AppendText($"e.IsSuccess = {e.IsSuccess}");
}
private async void ReturnFiles(string file, string id)
{
try
{
// get document root
var node = await webView21.CoreWebView2.CallDevToolsProtocolMethodAsync("DOM.getDocument", "{}");
Dictionary<string, object> nodeinfo = JsonSerializer.Deserialize<Dictionary<string, object>>(node);
textBox2.AppendText($"getDocument {node}{Environment.NewLine}");
if (nodeinfo.ContainsKey("root"))
{
var query = JsonSerializer.Serialize(new
{
nodeId = 1, // nodeId 는 int형
selector = id
});
node = await webView21.CoreWebView2.CallDevToolsProtocolMethodAsync("DOM.querySelector", query);
textBox2.AppendText($"querySelector {node}{Environment.NewLine}");
if (!String.IsNullOrEmpty(node))
{
nodeinfo = JsonSerializer.Deserialize<Dictionary<string, object>>(node);
var parameters = JsonSerializer.Serialize(new
{
files = new string[] { file.Replace('\\', '/').Replace(@"\", "/") },
nodeId = 0,
backendNodeId = 0,
objectId = 0
});
// we make it all the way to final step here!
textBox2.AppendText($"parameters {parameters}{Environment.NewLine}");
node = await webView21.CoreWebView2.CallDevToolsProtocolMethodAsync("DOM.setFileInputFiles", parameters);
textBox2.AppendText($"node {node}{Environment.NewLine}");
}
}
}
catch (Exception e)
{
textBox2.AppendText($"Exception DevTools {e.Message}{Environment.NewLine}");
textBox2.AppendText($"Exception DevTools StackTrace {e.StackTrace}{Environment.NewLine}");
}
}
}
}
| e.WebMessageAsJson = "1111" TryGetWebMessageAsString = 1111 getDocument {"root":{"backendNodeId":1,"baseURL":"file:///C:/Users/tjdsk/Desktop/Untitled.html","childNodeCount":2,"children":[{"backendNodeId":6,"localName":"","nodeId":2,"nodeName":"html","nodeType":10,"nodeValue":"","parentId":1,"publicId":"","systemId":""},{"attributes":["lang","ko"],"backendNodeId":5,"childNodeCount":2,"children":[{"attributes":[],"backendNodeId":7,"childNodeCount":0,"children":[{"backendNodeId":8,"localName":"","nodeId":5,"nodeName":"#text","nodeType":3,"nodeValue":" ","parentId":4}],"localName":"head","nodeId":4,"nodeName":"HEAD","nodeType":1,"nodeValue":"","parentId":3},{"attributes":[],"backendNodeId":4,"childNodeCount":3,"localName":"body","nodeId":6,"nodeName":"BODY","nodeType":1,"nodeValue":"","parentId":3}],"frameId":"519A21E70341361F8834B07463AEAB31","localName":"html","nodeId":3,"nodeName":"HTML","nodeType":1,"nodeValue":"","parentId":1}],"compatibilityMode":"NoQuirksMode","documentURL":"file:///C:/Users/tjdsk/Desktop/Untitled.html","localName":"","nodeId":1,"nodeName":"#document","nodeType":9,"nodeValue":"","xmlVersion":""}} querySelector {"nodeId":0} parameters {"files":["C:/Users/tjdsk/Desktop/fed83f319f334a3b12c992b3813c9fb0 (1).jpg"],"nodeId":0,"backendNodeId":0,"objectId":0} Exception DevTools Value does not fall within the expected range. Exception DevTools StackTrace at System.Runtime.InteropServices.Marshal.ThrowExceptionForHR(Int32 errorCode) at Microsoft.Web.WebView2.Core.CoreWebView2.CallDevToolsProtocolMethodAsync(String methodName, String parametersAsJson) at Webview2InputTypeClick.Form1.ReturnFiles(String file, String id) in C:\Users\tjdsk\source\repos\WinFormsApp1\Webview2InputTypeClick\Form1.cs:line 184 |

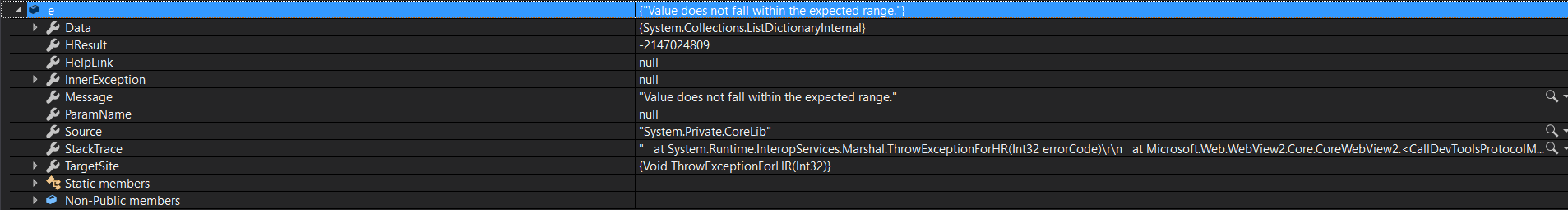

위 페이지와 같은 오류가 발생한다. (Value does not fall within the expected range.)
아직은 무리..
2021-10-22 수정.
- File System Access API 사용했는데도 여전히 관리자 권한으로 응용 프로그램 실행시 웹뷰2에서 파일창이 열리지 않음.
window.showOpenFilePicker();
File System Access API - Web APIs | MDN (mozilla.org)
File System Access API - Web APIs | MDN
The File System Access API allows read, write and file management capabilities.
developer.mozilla.org
2022-10-26 수정.

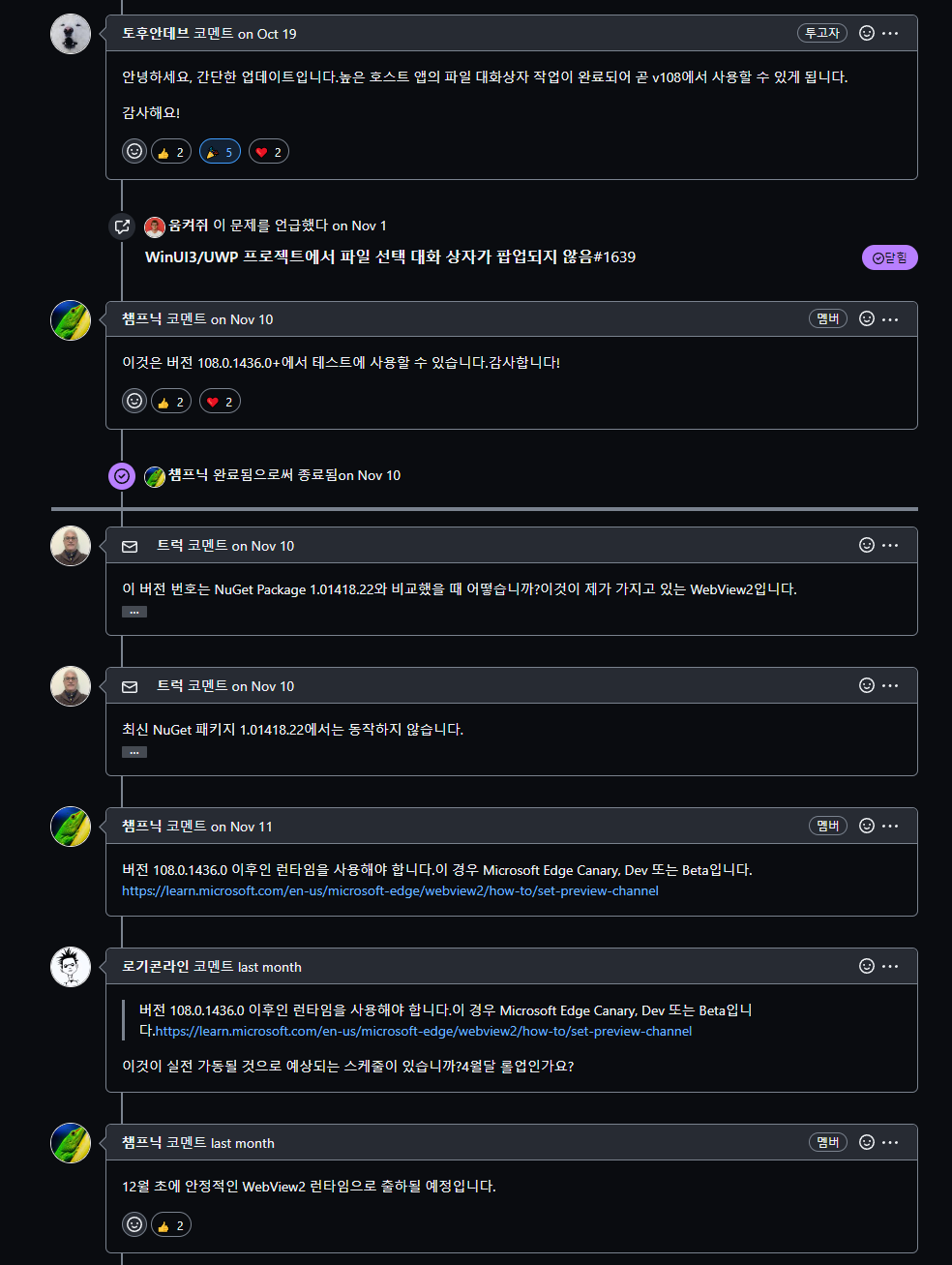

https://github.com/MicrosoftEdge/WebView2Feedback/issues/802#issuecomment-1282930267
File Open/Save Dialog doesn't show running w/ elevated privileges · Issue #802 · MicrosoftEdge/WebView2Feedback
Description When running application "as administrator" (elevated), the File Open dialog will not appear from a file input element. This is presumably because the renderer process is not ...
github.com

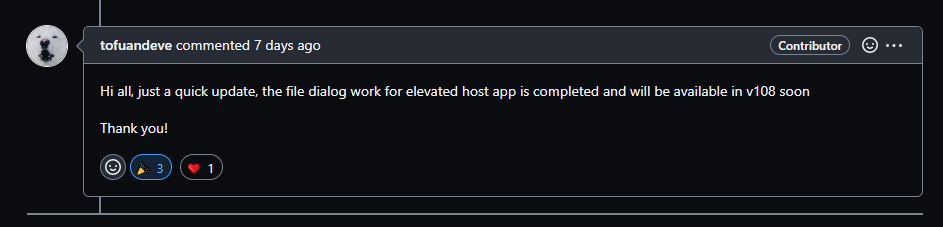

108 버전에서 곧 수정된다고 한다.
2022-12-14 수정.
런타임이 108.0.1462.0+버전 이상이며
누겟 패키지 Microsoft.Web.WebView2 1.0.1210.39버전으로 업데이트 후 관리자 권한으로 테스트해보니 파일 선택 창이 떴다..
https://learn.microsoft.com/en-us/deployedge/microsoft-edge-relnote-stable-channel
Microsoft Edge release notes for Stable Channel
Table of contents Release notes for Microsoft Edge Stable Channel Article 12/08/2022 6 minutes to read 6 contributors Feedback In this article --> These release notes provide information about new features and non-security updates that are included in the
learn.microsoft.com
https://learn.microsoft.com/en-us/microsoft-edge/webview2/release-notes?tabs=dotnetcsharp
Release Notes for the WebView2 SDK - Microsoft Edge Development
Release notes for Microsoft Edge WebView2 for Win32, WPF, and WinForms.
learn.microsoft.com
